ET3S Splice Plate HDG

  • Weight: 0.15 kg
  •
ET3S Splice Plate HDG

Material Specification

2 Splices required per length of tray.
Order fasteners separately for installation:

  • 2 x SBH
  • 2 x CNH

Product Details

ET3 splices are used to join 2 lengths of tray together, and are installed on the inside of the trays' side wall.

A full range of ET3 accessories are available to complement the system and provide easy on site fabrication.

ET3 accessories are common for all tray widths and can be used to make tees, risers, bends and crosses.

A Usually in stock at all branches

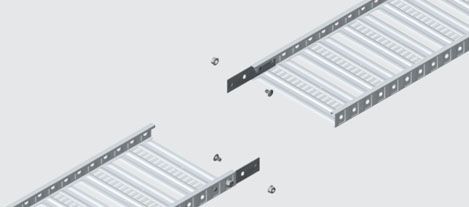

Application Example

splicing tray demo

Technical Details

Download cable tray and accessories datasheet from the catalogue.

ET3SH
H

Available Finishes
