ET5SHB Side Hanger Bracket G
ET5SHB Side Hanger Bracket G
Material Specification
Order fasteners separately for installation:
- 2 x SBH
- 2 x CNH
Threaded rod and hex nuts sold separately, hole diameter on bracket 14mm.
Suits both ET3 and ET5 tray.
Product Details
Side hanger brackets are used to suspend ET5 cable tray from threaded rod via the side wall of the tray, without the need for trapeze brackets. Always use in pairs on opposite sides of the tray.
A full range of ET5 accessories are available to complement the system and provide easy on site fabrication.
ET5 accessories are common for all tray widths and can be used to make tees, risers, bends and crosses.
B | Usually in stock at head office |

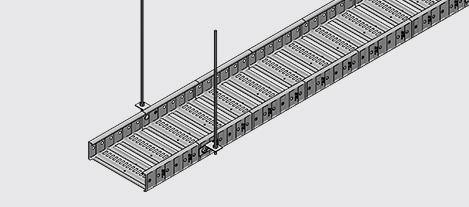

Application Example
Technical Details
Download cable tray and accessories datasheet from the catalogue.
ET3SHBG
