ET5RP Radius Plate G

  • Weight: 1.18 kg
ET5RP Radius Plate G

Material Specification

Nominal length 2.0 metres.
Order fasteners separately for installation.
Approximate length required to make a 150 radius bend

Tray SizeLength Req'd (m)Fasteners Req'd
ET5150 0.7 6
ET5300 0.9 6
ET5450 1.2 8
ET5600 1.4 8

Product Details

Use the radius plate to create a bend in your length of ET5 cable tray. A video demonstration on how to create bends in cable tray is available in our Media Centre.

A full range of ET5 accessories are available to complement the system and provide easy on site fabrication.

ET5 accessories are common for all tray widths and can be used to make tees, risers, bends and crosses.

A Usually in stock at all branches

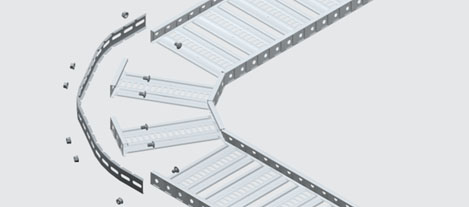

Application Example

using a radius plate

Technical Details

Download cable tray and accessories datasheet from the catalogue.
