Installation Example

Oct 02, 2012 | 0 Comments

Here is a great example of how a number of different EzyStrut products have been installed together:

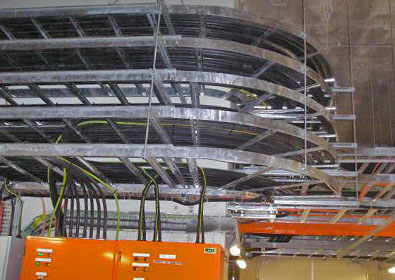

Starting from the top in this picture, there are 5 layers of steel cable ladder, each connecting to a bend. These ladders are supported by trapeze brackets made out of slotted strut, which in turn is supported by threaded rod secured to the ceiling. The installers have dropped cables out of the ladder to connect them with an electrical switchboard, and have also used some tray secured to the wall to carry smaller quantities of cables. In this case, the steel used for the products is hot dip galvanised.
