NEMA 2 Cable Ladder Cross SS
NEMA 2 Cable Ladder Cross SS
Product Details
Nema 2 cable ladder is manufactured from strip steel to the following standards:
- Mild steel and Hot Dip Galvanised to AS/NZS1365, AS1594, AS/NZS4680, ISO1461
- Stainless Steel to AS1449/AS2837
Meets the loading requirements of Nema 16A classification.
Length does not include built in splice plates: Splice plate length 150mm.
Technical Details
Download Steel Cable Ladder and Accessories datasheet from the catalogue.
CAD Download: N2 Cross STP Files.
Ordering Details

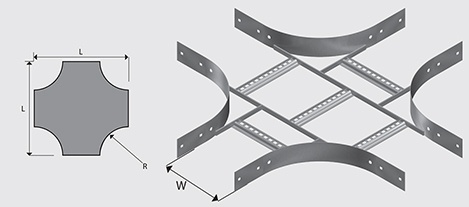

| Ordering Code | Cable Laying Width (mm) | Cable Laying Depth (mm) | Length L (mm) | ||
|---|---|---|---|---|---|
| 300 Radius | N2C1503S | 150 | 75 | 750 | D |
| N2C3003S | 300 | 75 | 900 | D | |
| N2C4503S | 450 | 75 | 1050 | D | |
| N2C6003S | 600 | 75 | 1200 | D | |
| N2C9003S | 900 | 75 | 1500 | D | |
| 450 Radius | N2C1504S | 150 | 75 | 1050 | D |
| N2C3004S | 300 | 75 | 1200 | D | |
| N2C4504S | 450 | 75 | 1350 | D | |
| N2C6004S | 600 | 75 | 1500 | D | |
| N2C9004S | 900 | 75 | 1800 | D | |
| 600 Radius | N2C1506S | 150 | 75 | 1350 | D |
| N2C3006S | 300 | 75 | 1500 | D | |
| N2C4506S | 450 | 75 | 1650 | D | |
| N2C6006S | 600 | 75 | 1800 | D | |
| N2C9006S | 900 | 75 | 2100 | D |
Standard radius is 450mm in stainless steel.
| Key: | |
| A | Usually in stock at all branches |
| B | Usually in stock at head office |
| C | Normal lead time |
| D | Made to order (lead time on enquiry) |
N2C...S
