NEMA 1 Cable Ladder HDG

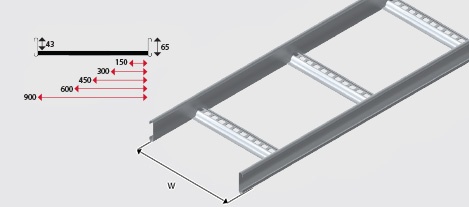

Product Details
Cable Laying Depth | 43mm |
Side Rail | 65mm |
Cable Laying Widths | 150-900mm |
Standard Length |
3 metres 6 metres (MTO only) |
Nema 1 cable ladder is manufactured from strip steel to the following standards:
- Mild steel and Hot Dip Galvanised to AS/NZS1365, AS1594, AS/NZS4680, ISO1461
- Stainless Steel to AS1449/AS2837 (available as made to order)
Meets the loading requirements of Nema 12B classification. Nema 1 in steel is also manufactured as a Riser Cable Ladder which is supplied with pre-welded tabs for vertical installation. Fittings and accessories for Nema 1 such as splice plates come with pre-inserted HS820 bolts for installation. Nema 1 is a good option for supporting 248kg/m over a 1.5m span or 112kg/m over a 3m span. The Nema 1 ladder is offered as standard in 3m lengths or 6m lengths can be made specially. The ladder allows a cabling depth of 43mm.
If you require standard 6m lengths, deeper cable laying depth or a higher load capability, try the Nema 2, 3, or 4 ladder.
Technical Details
Download Steel Cable Ladder and Accessories datasheet from the catalogue.
CAD Download: N1 Ladder STP Files.
Ordering Details
Ordering Code | Cable Laying Width W (mm) | Cable Laying Depth (mm) | Overall Width (mm) | Side Rail Height (mm) | |
---|---|---|---|---|---|
N1L150H | 150 | 43 | 176 | 65 | A |
N1L300H | 300 | 43 | 326 | 65 | A |
N1L450H | 450 | 43 | 476 | 65 | A |
N1L600H | 600 | 43 | 626 | 65 | A |
N1L900H | 900 | 43 | 926 | 65 | A |
Key: | |
A | Usually in stock at all branches |
B | Usually in stock at head office |
C | Normal lead time |
D | Made to order (lead time on enquiry) |
Load Rating & Deflection
Span M | Load per M (kg) | Deflection (mm) |
---|---|---|
3 | 112 | 18 |
2.5 | 160 | 13 |
2 | 233 | 9 |
1.5 | 248 | 6 |
Get help choosing the right Cable Ladder EzyCalc
