V.Lock with Retrofit Hook

  •
V.Lock with Retrofit Hook

Material Specification

Wire Diameter  3mm
Length 1m - 10m
ULS 485kg
Material Finish Zinc Plated*
*hot dip galvanised and stainless steel options are available by made-to-order special request

Product Details

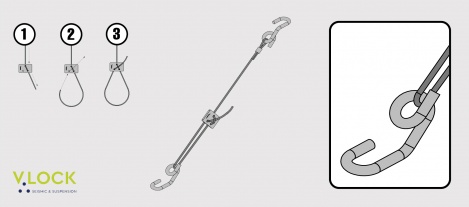

Each V.Lock flexible seismic brace consists of three components: pre-fixed ceiling and rod hooks, 3mm wire, and the intuitive and innovative V.Lock plate, which allows for looping and attaching of the wire to the building services without the need for swaging, crimping, or bringing along any extra tools.

Ordering Details

Wire SizeWire LengthPart Number
3mm 1m V31HZ C
3mm 2m V32HZ B
3mm 3m V33HZ B
3mm 4m V34HZ B
3mm 6m V36HZ B
3mm 10m V310HZ B
Key:
A Usually in stock at all branches
B Usually in stock at head office
C Normal lead time
D Made to order (lead time on enquiry)









Z
