V.Lock with Angle Bracket

  •
V.Lock with Angle Bracket

Material Specification

Wire Diameter  5mm or 6mm
Length 1m - 10m
ULS 485kg
Material Finish Zinc Plated*
*hot dip galvanised and stainless steel options are available by made-to-order special request

Product Details

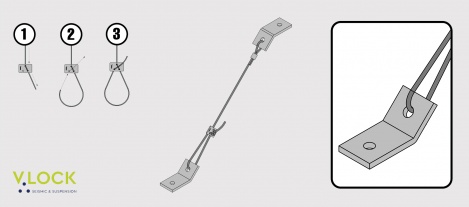

Each V.Lock flexible seismic brace consists of three components: pre-fixed ceiling and rod angle brackets, 5mm or 6mm wire, and the intuitive and innovative V.Lock plate, which allows for looping and attaching of the wire to the building services without the need for swaging, crimping, or bringing along any extra tools.

Ordering Details

Wire SizeWire LengthPart Number
5mm 1m V51AB45 C
5mm 2m V52AB45 B
5mm 3m V53AB45 B
5mm 4m V54AB45 B
5mm 6m V56AB45 B
5mm 10m V510AB45 B
6mm 1m V61AB45 C
6mm 2m V62AB45
6mm 3m V63AB45
6mm 4m V64AB45
6mm 6m V66AB45
6mm 10m V610AB45
Key:
A Usually in stock at all branches
B Usually in stock at head office
C Normal lead time
D Made to order (lead time on enquiry)
Z

Available Finishes
