V.Lock with Retro Angle Bracket
Material Specification
| Wire Diameter |
3mm |
| Length |
1m - 10m |
| ULS |
485kg |
| Material Finish |
Zinc Plated* |
*hot dip galvanised and stainless steel options are available by made-to-order special request
Product Details

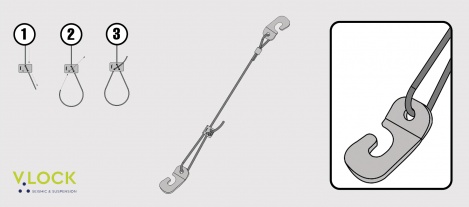

Each V.Lock flexible seismic brace consists of three components: pre-fixed ceiling and rod angle brackets, 3mm wire, and the intuitive and innovative V.Lock plate, which allows for looping and attaching of the wire to the building services without the need for swaging, crimping, or bringing along any extra tools.
Ordering Details
| Wire Size | Wire Length | Part Number |
|---|
| 3mm |
1m |
V31RAB45 |
C |
| 3mm |
2m |
V32RAB45 |
C |
| 3mm |
3m |
V33RAB45 |
B |
| 3mm |
4m |
V34RAB45 |
C |
| 3mm |
6m |
V36RAB45 |
B |
| 3mm |
10m |
V310RAB45 |
B |
| Key: |
| A |
Usually in stock at all branches |
| B |
Usually in stock at head office |
| C |
Normal lead time |
| D |
Made to order (lead time on enquiry) |
