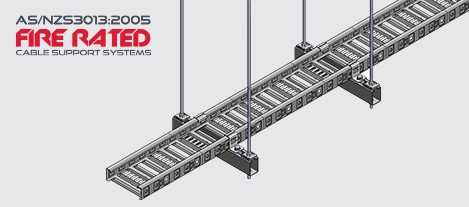

FRET3T Fire Rated ET3 on Trapeze Brackets G
Product Details
| Cable Laying Depth | 43mm |
| Side Wall | 50mm |
| Cable Laying Widths | 150-600mm |
| Standard Length | 3 metres |
| Support Type | Trapeze |
Technical Details
Download FRET3 on Trapeze Data Sheets & Installation Guide.
Download AS/NZS3013:2005 Fire Rated Cable Support Systems catalogue.
Ordering Details
EzyStrut will supply a tailored kit solution based on your selection from the load, width, length and tier options listed in the table below, as well as the overall length required.
To ensure AS/NZS3013:2005 compliance, all tray must be installed with the included splice plates, hold downs, trapeze brackets and fasteners, according to the recommended support span.
| Load (kg/m) | Support Span (m) | Width Options | Length Options | Multi-Tier Options | Side-By-Side Options |
|---|---|---|---|---|---|
|
12.5 |
1.5 |
150mm |
3m |
One tier only use M10 rod |
Available in side-by-side (total 25kg/m) |
|
20 |
1 |
150mm |
3m |
One tier only use M10 rod |
not available |
|
50 |
0.5 |
150mm 300mm 450mm 600mm |
3m |
Up to two tiers, use M12 GR8.8 rod |
not available |
Note: anchors and threaded rod are purchased separately.
