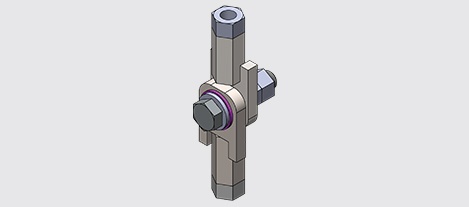

Internal Thread Swivel Bracket

  •
Internal Thread Swivel Bracket

Material Specification

Suitable for M12 Threaded Rod
Swivels up to 45 degrees
Available in Stainless Steel or Hot Dip Galvanised Configurations
Optional nylon separator to prevent reaction between dissimilar metals
Load rated to match Grade 4.6 Threaded Rod
Fire-Rated to AS3013:2004

Product Details

The Internal Thread Swivel Bracket is the most versatile threaded rod coupler on the market. Available in kit form with hot-dip galvanised or stainless configurations, and complete with an optional nylon separator, the bracket is perfect for use with dissimilar metals. The swivel design allows for installation almost anywhere. It doesn't matter if the overhead substrate isn't level, the Internal Thread Swivel Bracket will get the job done.

Technical Details

Download the Internal Thread Swivel Bracket brochure.

Ordering Details

Ordering CodeMaterial FinishDescription
ITS12KH-S HDG to SS GR316 Internal Thread Swivel Bracket Kit M12 (HDG to SS GR316)
ITS12KH HDG Internal Thread Swivel Bracket Kit M12 (HDG)
ITS12KS SS GR316 Internal Thread Swivel Bracket Kit M12 SS GR316

Note: installing the internal thread swivel bracket may require further adaptation to the hold down brackets used with your cable tray or ladder. Please contact EzyStrut for more details.

ITS12
