EF80-4WB Four-Way Bracket HDG

  •
EF80-4WB Four-Way Bracket HDG

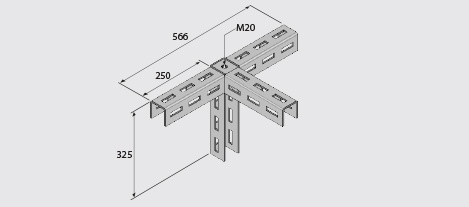

Material Specification

Height 325mm
Width 566mm
Arm Length 250mm
Thickness 6mm
Slot Size 40x15.5mm
Corner Hole Size M20

Technical Details

Download our EzyFrame brochure for full technical details, load tables and section properties.

Ordering Details

Order 24 x EF80100-BNSZ spring bolts separately for installation.

C Normal lead time
EF80-4WBH
H

Available Finishes
