EF50-2WB Two-Way Bracket HDG

  •
EF50-2WB Two-Way Bracket HDG

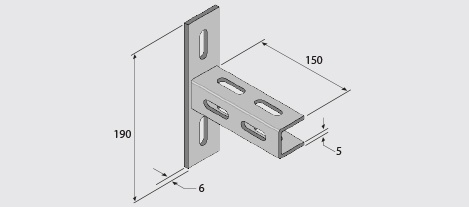

Material Specification

Height 190mm
Arm Length 150mm
Base Thickness 6mm
Arm Thickness 5mm
Slot Size 40x12mm

Technical Details

Download our EzyFrame brochure for full technical details, load tables and section properties.

Ordering Details

Order 6 x EF50-BNSZ spring bolts separately for installation.

A Usually in stock at all branches
EF50-2WBH
H
