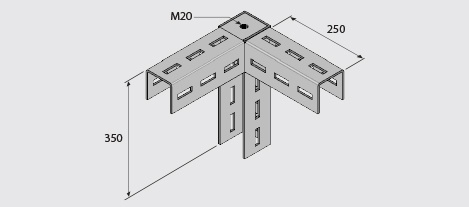

EF100-3WB Three-Way Bracket (Right Hand) HDG

Material Specification

Height	350mm
Arm Length	250mm
Thickness	6mm
Slot Size	40x15.5mm
Corner Hole Size	M20

Technical Details

Download our EzyFrame brochure for full technical details, load tables and section properties.

Ordering Details

Order 18 x EF80100-BNSZ spring bolts separately for installation.

C	Normal lead time

EF100-3WBRH

H

Available Finishes

Hot Dip Galvanised
