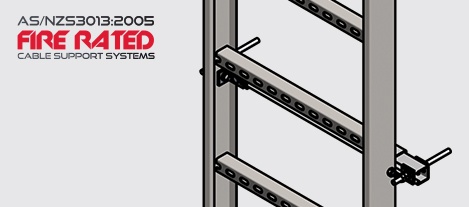

FRN2 Fire Rated N2 Ladder installed Vertically
FRN2 Fire Rated N2 Ladder installed Vertically
Product Details
| Cable Laying Depth | 45mm |
| Side Wall | 93mm |
| Cable Laying Widths | 150-600mm |
| Standard Length | 6 metres |
| Support Type | Suitable anchor |
Technical Details
Download FRN2 Installed Vertically Data Sheets & Installation Guide.
Download AS/NZS3013:2005 Fire Rated Cable Support Systems catalogue.
Ordering Details
EzyStrut will supply a tailored kit solution based on your selection from the load, width, and length options listed in the table below, as well as the overall length required.
To ensure AS/NZS3013:2005 compliance, all ladder must be installed with the included splice plates, hold downs, channel, sleeve mounts and fasteners according to the recommended support span.
| Load (kg/m) | Support Span (m) | Width Options | Length Options |
|---|---|---|---|
| 50 | 1.5 |
150mm |
6m |
Note: suitable anchors are purchased separately.
FRN2-V
