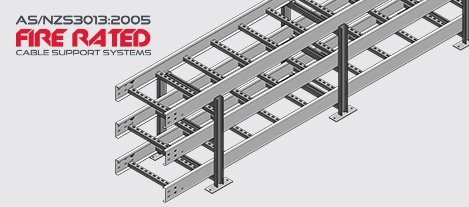

FRN4H Fire Rated N4 Ladder on H-Frames HDG

  • Weight: 150-600mm width, 101mm cable laying depth, 150mm side rail, 3 or 6m lengths
  •
FRN4H Fire Rated N4 Ladder on H-Frames HDG

Product Details

Cable Laying Depth 101mm
Side Wall 150mm
Cable Laying Widths 150-900mm
Standard Length 3 metres or 6 metres
Support Type H-Frame

Ordering Details

EzyStrut will supply a tailored kit solution based on your selection from the load, width, length and tier options listed in the table below, as well as the overall length required.

To ensure AS/NZS3013:2005 compliance, all ladder must be installed with the included splice plates, hold downs, H-Frames and fasteners, according to the recommended support span.

Load (kg/m)Support Span (m)Width OptionsLength OptionsNotes
5 3

150mm
300mm
450mm
600mm

 3m
6m		 Available for up to three tier installation*
10 2.5
25 2
80 1.5
100 1

* for standard H-Frames. Please contact EzyStrut for increased tier options.

Note: anchors are purchased separately.

FRN4H..H
H
