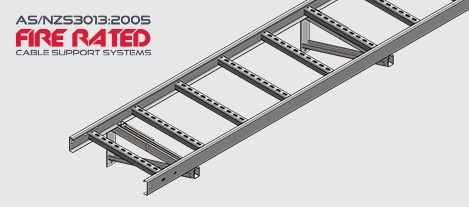

FRN2CB Fire Rated N2 Ladder on Cantilever Brackets HDG
FRN2CB Fire Rated N2 Ladder on Cantilever Brackets HDG
Product Details
| Cable Laying Depth | 45mm |
| Side Wall | 93mm |
| Cable Laying Widths | 150-600mm |
| Standard Length | 3 metres or 6 metres |
| Support Type | Cantilever Brackets |
Technical Details
Download FRN2 on Cantilever Data Sheets & Installation Guide.
Download AS/NZS3013:2005 Fire Rated Cable Support Systems catalogue.
Ordering Details
EzyStrut will supply a tailored kit solution based on your selection from the load, width, length and tier options listed in the table below, as well as the overall length required.
To ensure AS/NZS3013:2005 compliance, all ladder must be installed with the included splice plates, hold downs, cantilever brackets and fasteners, according to the recommended support span.
| Load (kg/m) | Support Span (m) | Width Options | Length Options | Notes |
|---|---|---|---|---|
|
4 |
3 | 150mm 300mm 450mm 600mm |
3m 6m |
All cantilever brackets are suitable for a 100kg centred point load |
| 8 | 2.5 | |||
| 20 | 2 | |||
| 50 | 1.5 |
Note: anchors are purchased separately.
FRN2CB..H
