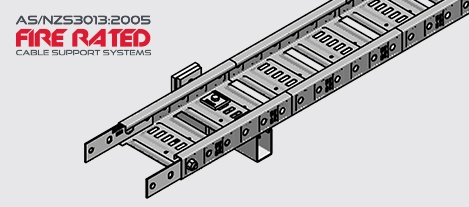

FRET3CB Fire Rated ET3 on Cantilever Brackets G
FRET3CB Fire Rated ET3 on Cantilever Brackets G

Product Details
Cable Laying Depth | 43mm |
Side Wall | 50mm |
Cable Laying Widths | 150-600mm |
Standard Length | 3 metres |
Support Type | Cantilever Bracket |
Technical Details
Download FRET3 on Cantilever Data Sheets & Installation Guide.
Download AS/NZS3013:2005 Fire Rated Cable Support Systems catalogue.
Ordering Details
EzyStrut will supply a tailored kit solution based on your selection from the load, width, length and tier options listed in the table below, as well as the overall length required.
To ensure AS/NZS3013:2005 compliance, all tray must be installed with the included splice plates, hold downs, cantilever brackets and fasteners, according to the recommended support span.
Load (kg/m) | Support Span (m) | Width Options | Length Options | Cantilever Design |
---|---|---|---|---|
10 |
1 |
150mm |
3m |
Uses FRCB Cantilever Design |
20 |
0.85 |
|||
25* |
1.5 |
150mm+150mm 150mm+300mm 300mm+300mm |
* two 12.5kg/m trays
Note: anchors are purchased separately.
FRET3CB..G
