EMDO Cable Drop Out
Material Specification
| Colours | Yellow |
| Blue | |
| Pre-Galv | |
| Silver | |
| White |
Product Details

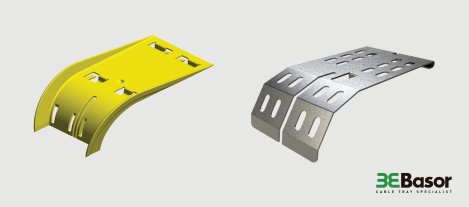

The EzyMesh Cable Drop Out clicks into place on EzyMesh and enables the installer to safely and smoothly drop cables out of mesh lengths.
- The radius protection provided prevents sharp bends or kinks in cables. In the case of network cables this prevents connectivity loss.
- Can be installed in seconds – no tools are required, the product simply clicks into place, anywhere along the length of mesh.
- No sharp edges.
- Easily moved, and reinstalled.
- Custom colours can be supplied upon request.
Technical Details
Download our Mesh Cable Supports brochure.
Ordering Details
| Ordering Code | Colour | |
|---|---|---|
| EMDOY | Yellow | A |
| EMDOB | Blue | D |
| EMDOPG | Pre-Galv | D |
| EMDOS | Silver | D |
| EMDOW | White | D |
Yellow is standard and other colours are available as made to order (MTO).
| Key: | |
| A | Usually in stock at all branches |
| B | Usually in stock at head office |
| C | Normal lead time |
| D | Made to order (lead time on enquiry) |
Supplied individually.
EMDO
