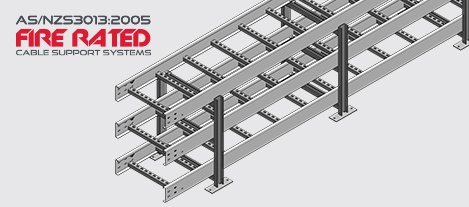

FRN3H Fire Rated N3 Ladder on H-Frames HDG
FRN3H Fire Rated N3 Ladder on H-Frames HDG
Product Details
| Cable Laying Depth | 83mm |
| Side Wall | 131mm |
| Cable Laying Widths | 150-600mm |
| Standard Length | 3 metres or 6 metres |
| Support Type | H-Frame |
Technical Details
Download FRN3 on H-Frame Data Sheets & Installation Guide.
Download AS/NZS3013:2005 Fire Rated Cable Support Systems catalogue.
Ordering Details
EzyStrut will supply a tailored kit solution based on your selection from the load, width, length and tier options listed in the table below, as well as the overall length required.
To ensure AS/NZS3013:2005 compliance, all ladder must be installed with the included splice plates, hold downs, H-Frames and fasteners, according to the recommended support span.
| Load (kg/m) | Support Span (m) | Width Options | Length Options | Notes |
|---|---|---|---|---|
| 5 | 3 |
150mm |
3m 6m |
Available for up to three tier installation* |
| 10 | 2.5 | |||
| 26 | 2 | |||
| 30 | 1.9 | |||
| 60 | 1.5 |
* for standard H-Frames. Please contact EzyStrut for increased tier options.
Note: anchors are purchased separately.
FRN3H..H
